Feature of gantry structure water jet cutting worktable: |
1 |
Gantry structure, beautiful appearance, reasonable structure design, with good rigidity and stability, even by force.Smooth operation, accurate and safe. |
2 |
Machine bed and the load-bearing platform sub-structure, load-bearing platform will not affect the long-term stress changes in machine tool accuracy,NC sports institutions and support the workpiece table for sub-structure, to put an end to the cutting process due to water flowing in the right Degrees of movement. |
3 |
Cutting platform X beam (gantry) using disposable aluminum extrusion.Gold material, light weight, steel is strong, and without deformation. Is water cutting machine.The most advanced technology. |
4 |
The X, Y, Z three-axis are canceled dust folding, the Y-axis towline Built-in Results Structure, such structure can significantly improve the service life of the machine to reduce the use and maintenance cost. The countries that adopted.The occasion of the most popular design concept, the direction of development of water jet cutting machine. High quality care chain and a dedicated cable, the Durable, and high reliability. |
5 |
Drive motor and ball screw connected by a flexible coupling directly connected, rather thanIt torsionally rigid coupling, compared with the advantages of Reversible absorb vibration, transmission,Higher accuracy. |
6 |
International brand of high quality ball screw, linear motion guide drive mechanism to ensure that the velocity of the cutting headAnd accuracy of 3m above itinerary using turn Nut transmission. Long distance transmission more reliable over-travel automatically limit.Dual protection function and the soft limit. |
7 |
Y to the bed structure castings and concrete structures,Metal part of the aging treatment by gantry planing, rail grinding, consumerIn addition to the micro-deformation, long to maintain the mechanical precision.
Parameters of CNC waterjet cutter working on different materials such as glass,metal,stone(as follows)
Materials |
Thickness |
Cutting speed (mm/min) |
380Mpa |
420Mpa |
600Mpa |

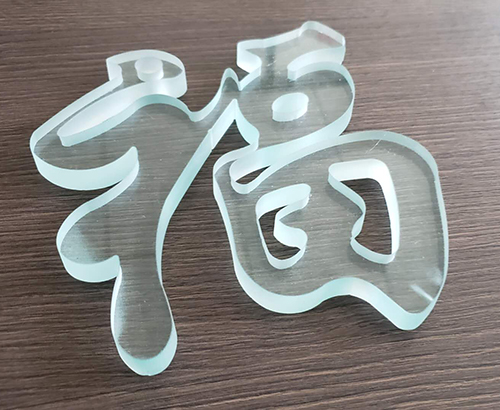

Normal glass cutting |
6 mm |
1400-1500 |
2100-2250 |
2520-2700 |
8 mm |
690-800 |
1035-1200 |
1242-1440 |
19mm |
400-500 |
600-750 |
950-1150 |
Granite panel cutting |
20mm |
260-300 |
390-450 |
468-540 |
30mm |
170-200 |
255-300 |
306-360 |
Porcelain tile cutting |
10mm |
900-1000 |
1350-1500 |
1620-1800 |

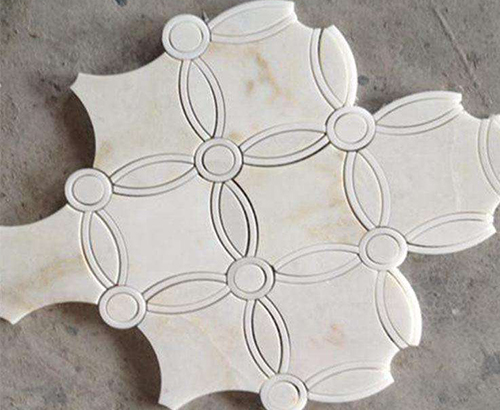

Marble panel cutting |
10mm |
600-900 |
900-1350 |
1080-1620 |
20mm |
350-400 |
526-600 |
630-720 |
30mm |
260-300 |
390-450 |
468-540 |
Laminating glass cutting |
21mm |
490-600 |
735-900 |
882-1080 |
Sponge and foam cutting |
20mm |
6000-7000 |
9000-10500 |
10800-12600 |
50mm |
2600-3000 |
3900-4500 |
4680-5400 |
80mm |
1600-2000 |
2400-3000 |
2880-3600 |
Steel plate cutting |
10mm |
170-220 |
255-330 |
306-396 |
20mm |
75-100 |
113-150 |
135-180 |
30mm |
15-30 |
22-45 |
27-54 |
Stainless steel plate cutting |
1 mm |
1000-1200 |
1500-1800 |
1800-2160 |
3 mm |
500-600 |
750-900 |
900-1080 |
6 mm |
240-300 |
360-450 |
432-540 |
10mm |
150-180 |
225-270 |
270-324 |
16mm |
85-100 |
128-150 |
153-180 |
20mm |
70-80 |
105-120 |
126-144 |
30mm |
30-40 |
45-60 |
54-72 |
Copper plate cutting |
3 mm |
1350-1500 |
2025-2250 |
2430-2700 |
5 mm |
700-850 |
1050-1275 |
1260-1530 |
20mm |
160-200 |
240-300 |
288-360 |
30mm |
100-120 |
150-180 |
180-216 |
Titanium alloy cutting |
13mm |
100-115 |
150-173 |
180-207 |
|
