Feature of new design big size water jet cutter EK2060 | |
1 | EAAK New design big size water jet industry cutting mahcine with large cutting size up to 2000*6000mm or 2000*8000mm.We can also customize 3000*10000mm refer to customer request. |
2 | This series of machine specially equips enhanced structure and upgraded transmission system,more suit for cutting heavy thick metal plate and stone plate. |
1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle) | |
2.Max. oil discharge is 90 L/min | |
3.Max. water discharge is 3.0L/min | |
4.Max. diameter of orifice is 0.3mm | |
5.Max. operating pressure is 420MPa | |
6.Continuous operating pressure is 330-380MPa | |
7.Power requirement:37KW,380V/50HZ | |
8.Type of shift is electronic | |
9.Maintenance free accumulator whose capability is 1.3L using American technology. |

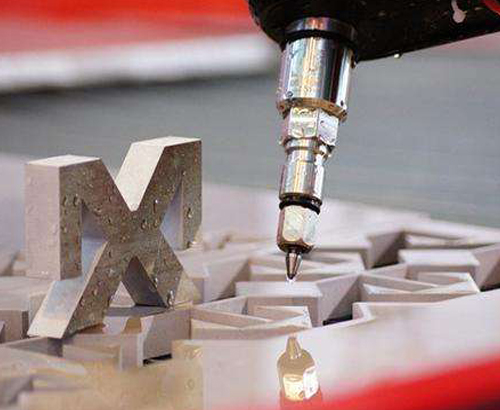

Specification of big size 2000*6000mm waterjet cutting machine EK2060: | |
Model | EK2060 |
X Y axis Working size | 2000mm*6000mm |
Z working height | 150mm |
Cutting Pressure | 420Mpa 37kw UHP pump |
Control accuracy | 0.01mm |
Cutting accuracy | 0.1-0.2mm |
Repositioning Accuracy | 0.05mm |
Max cutting thickness | 300mm(depends on materials) |
Max. moving speed | 6000mm/min |
Power supply | 380V 50Hz |
Environmental temperature | -10-50°C |
Max flow rate | 3.7L/min |
Max oil discharge | 206L/min |
Max delivery capacity of oil pump | 106L/min |
Control system | Ncstudio IPC control system |
CAD/CAM software | AutoCAD,ArtCAM |
Drive motor | Japan Yaskawa servo drive motor |
Parameters of CNC waterjet cutter working on different materials such as glass,metal,stone(as follows) | ||||
Materials | Thickness | Cutting speed (mm/min) JUST FOR REFERENCE | ||
380Mpa | 420Mpa | 600Mpa | ||
Normal glass cutting | 6 mm | 1400-1500 | 2100-2250 | 2520-2700 |
8 mm | 690-800 | 1035-1200 | 1242-1440 | |
19mm | 400-500 | 600-750 | 950-1150 | |
Granite panel cutting | 20mm | 260-300 | 390-450 | 468-540 |
30mm | 170-200 | 255-300 | 306-360 | |
Porcelain tile cutting | 10mm | 900-1000 | 1350-1500 | 1620-1800 |
Marble panel cutting | 10mm | 600-900 | 900-1350 | 1080-1620 |
20mm | 350-400 | 526-600 | 630-720 | |
30mm | 260-300 | 390-450 | 468-540 | |
Laminating glass cutting | 21mm | 490-600 | 735-900 | 882-1080 |
Sponge and foam cutting | 20mm | 6000-7000 | 9000-10500 | 10800-12600 |
50mm | 2600-3000 | 3900-4500 | 4680-5400 | |
80mm | 1600-2000 | 2400-3000 | 2880-3600 | |
Steel plate cutting | 10mm | 170-220 | 255-330 | 306-396 |
20mm | 75-100 | 113-150 | 135-180 | |
30mm | 15-30 | 22-45 | 27-54 | |
Stainless steel plate cutting | 1 mm | 1000-1200 | 1500-1800 | 1800-2160 |
3 mm | 500-600 | 750-900 | 900-1080 | |
6 mm | 240-300 | 360-450 | 432-540 | |
10mm | 150-180 | 225-270 | 270-324 | |
16mm | 85-100 | 128-150 | 153-180 | |
20mm | 70-80 | 105-120 | 126-144 | |
30mm | 30-40 | 45-60 | 54-72 | |
Copper plate cutting | 3 mm | 1350-1500 | 2025-2250 | 2430-2700 |
5 mm | 700-850 | 1050-1275 | 1260-1530 | |
20mm | 160-200 | 240-300 | 288-360 | |
30mm | 100-120 | 150-180 | 180-216 | |
Titanium alloy cutting | 13mm | 100-115 | 150-173 |
180-207 |
